Brembo RCS Forged Radial Clutch Master Cylinder (Adjustable 16/18 Ratio) Ref: BREMBO-RCS-CL

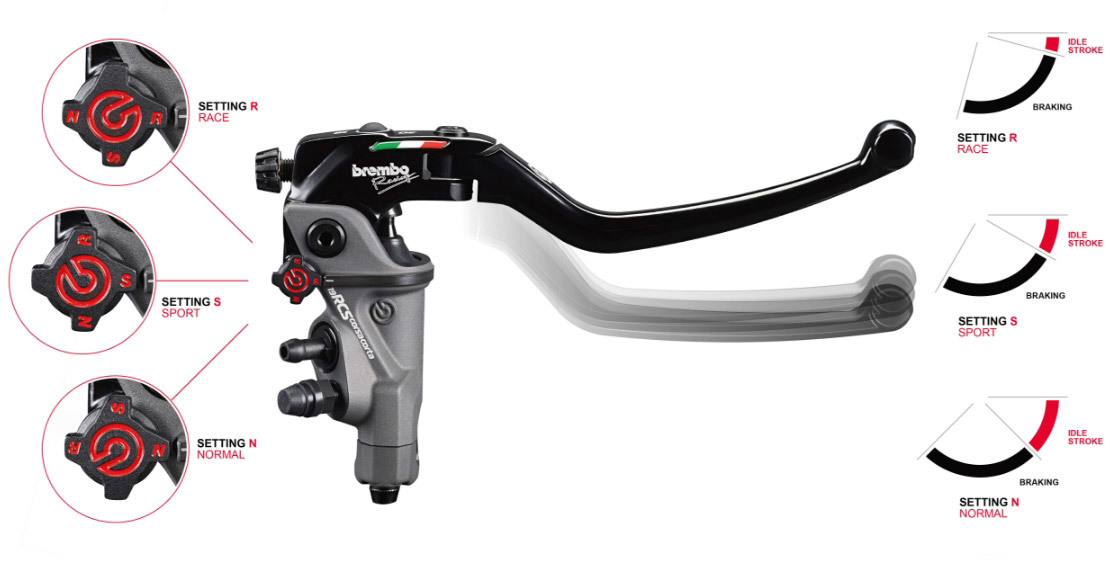

Beautifully aesthetic and highly functional, the Brembo Clutch Master Cylinder is equipped with the patented RCS adjustment system for lever centre distance of 16-18mm, which makes it suited for any type of hand.
This system allows an ideal feeling between rider and bike to be achieved in just a few seconds. Using a simple screwdriver you can go from 16mm, for those who want a softer and more comfortable feel, to 18mm for those who prefer more of a race feel.
The clutch master cylinder is available with a 16, 17 or 19mm diameter piston, and has a folding long lever with a MotoGP/Superbike style hard anodised surface finish.
Brembo uses only cutting-edge manufacturing procedures in order to guarantee excellent operation and performance.
TECHNICAL FEATURES
- Material: Forged Aluminium
- Piston Bore: 16mm suitable for most Italian European bikes or 19mm for most Japanese bikes
- Lever ratio: 16-18mm
- Type: Radial
- Surface protection: Hard Anodised
- Weight: 350g
- Handlebar fixing diameter: 22mm (7/8-inch)
Brembo Part Numbers
16mm: 110.A263.50 / 110A26350
17mm: 110.A263.55 / 110A26355
18mm: 110.A263.70 / 110A26370
Separate fluid reservoir will be required and the recommended matching optional Brembo remote fluid reservoir is available below (in some cases it may be possible to adapt a bike's original reservoir and mounting bracket - fluid inlet stub/pipe is 7mm OD).
(Shipping costs calculated before checkout and 20% UK VAT/tax will be removed for non-UK destinations)
People who bought this also bought... |
[+] CLICK HERE FOR MORE IMAGES...
Brembo HPK/RCS Cable Clutch Perch with Folding Black Lever Ref: 56844
This is an official Brembo part, produced under licence by their UK race distributor.
For those who fit a Brembo Master Cylinder and want a matching cable clutch lever - this lightweight but strong cable clutch perch compliments the Brembo HPK brake master cylinder perfectly.
- Lightweight aluminium alloy construction
- Forged folding/flip-up lever (minimises damage in an accident)
- CNC machined from billet body
- Supplied with electrical clutch interlock switch
- Oversize cable adjuster for easy adjustment on-the-fly
- Matches Brembo RCS hydraulic master cylinder
- Handlebar fixing diameter: 22mm (7/8-inch)
- For cable ends of up to 8mm diameter and outer cables of 8.5mm
Price:£187.50 (£225.00 Including UK VAT at 20%)
(Shipping costs calculated before checkout and 20% UK VAT/tax will be removed for non-UK destinations)
